The details of FoldDB ID: fd0925 |
|---|
Use the buttons at the bottom of Jsmol viewer to see different representations, ON/OFF Hydrogens, and ON/OFF rotation.
3D model is for representation purpose only. To access the experimental 3D structure kindly go to the browse structure tab and look for PDB or CCDC id.
.
.
| Identification | |
|---|---|
| FoldDB ID | fd0925 |
| Smiles | |
| Inchi Key | VPWUAPUIPORNQZ-DUBJIQJQSA-N |
| Molecular weight | 1305.36 |
| Molecular formula | C68H72N8O19 |
| Other Name

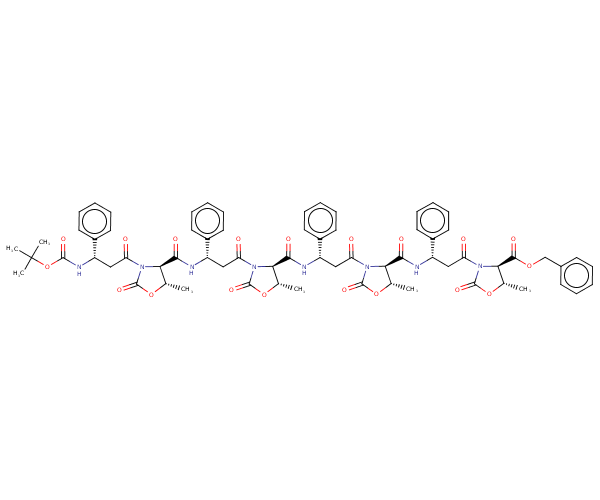

Since there is no uniform representation for the non-natural peptides. This is the name as it is mentioned in the original article and/or the external database. | Boc-[(S)-β3-hPhg-D-Oxd]4-Obn |
| Note | |
| Source | synthetic construct |
| External ID | |||||
|---|---|---|---|---|---|
| Reaxys ID | 11122608 | ||||
| Structural Information | |
|---|---|
| Structure reported | yes |
| Method | NMR |
| NMR Solvent | [D6]acetone |
| Other information | |
|---|---|
| Foldamer type | α/β Peptide |
| Other type | α amino acid containing oxazolidin-2-one moiety |
| Structure Type | helical |
| Calculated properties | |
|---|---|
| LogP | 6.82600 |
| Rotatable Bonds | 33 |
| H Bond Donor | 4 |
| H Bond Acceptor | 27 |
| Polar Surface Area (PSA) | 338.37000 |
| Activity |
|---|
| Activity not reported |
| Citations | |||||
|---|---|---|---|---|---|
| ID | Title | Year | Authors | Journal | DOI |
Synthesis and Secondary Structure of Alternate α,β-Hybrid Peptides Containing Oxazolidin-2-one Moieties | 2007 | Angelici, Gaetano., Luppi, Gianlugi., Kaptein, Bernard., Broxterman, Quirinus B., Hofmann, Hans-Jörg., Tomasini, Claudia | European Journal of Medicinal Chemistry | ||
