The details of FoldDB ID: fd1142 |
|---|
Use the buttons at the bottom of Jsmol viewer to see different representations, ON/OFF Hydrogens, and ON/OFF rotation.
3D model is for representation purpose only. To access the experimental 3D structure kindly go to the browse structure tab and look for PDB or CCDC id.
.
.
| Identification | |
|---|---|
| FoldDB ID | fd1142 |
| Smiles | |
| Inchi Key | MZUSAWFRAMKYOJ-LJWNLINESA-N |
| Molecular weight | 837.033 |
| Molecular formula | C38H68N12O9 |
| Other Name

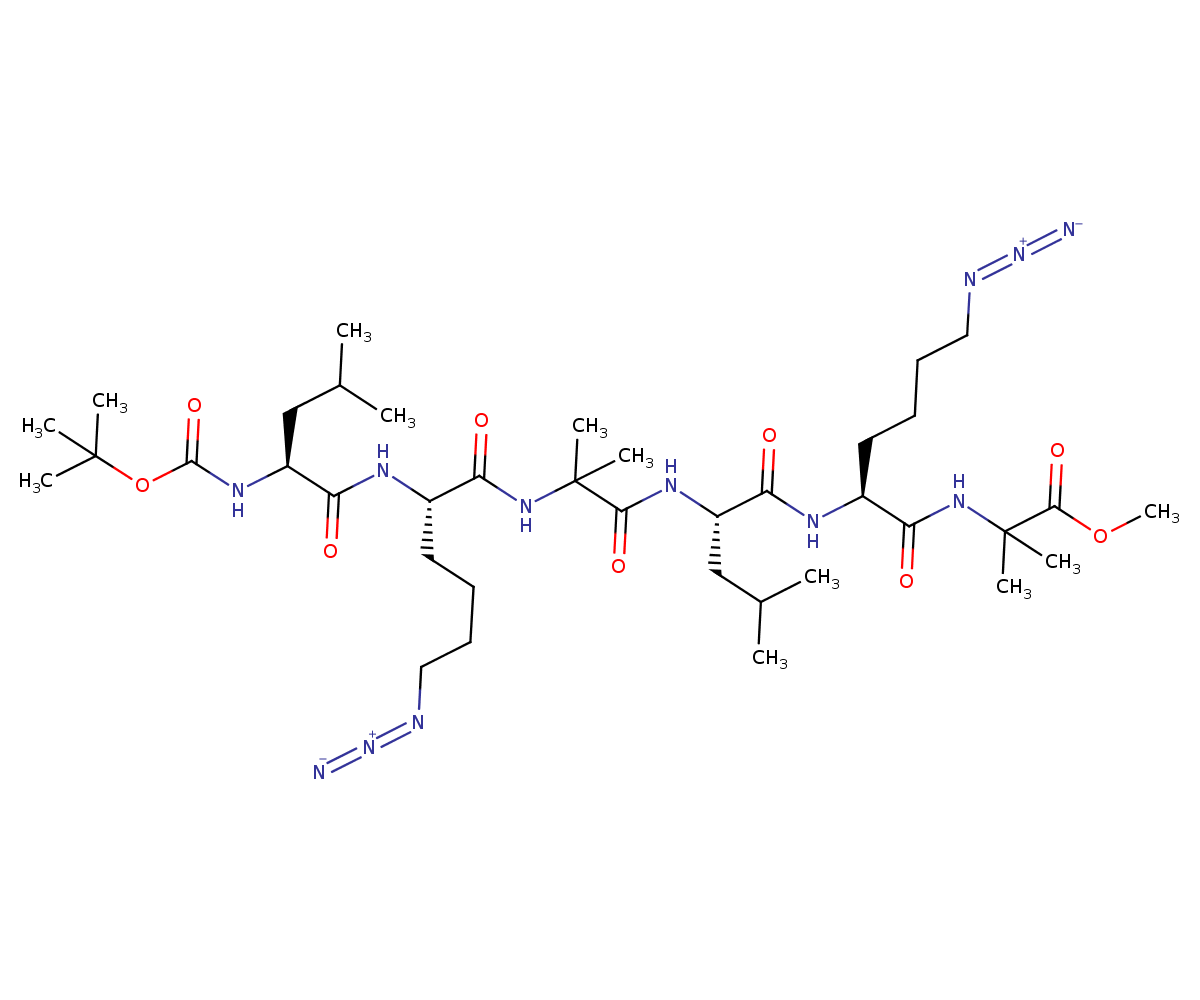

Since there is no uniform representation for the non-natural peptides. This is the name as it is mentioned in the original article and/or the external database. | Boc-(L-Leu-L-Azl-Aib)2-OMe |
| Note | Azl=Azidolysine Aib=2-aminoisobutyric acid |
| Source | synthetic construct |
| External ID | |||||
|---|---|---|---|---|---|
| Reaxys ID | 32144343 | ||||
| Structural Information | |
|---|---|
| Structure reported | yes |
| Method | NMR |
| NMR Solvent | chloroform-d1 |
| Other information | |
|---|---|
| Foldamer type | Aib foldamer |
| Other type | Post-Functionalizable Peptide |
| Calculated properties | |
|---|---|
| LogP | 3.35400 |
| Rotatable Bonds | 35 |
| H Bond Donor | 6 |
| H Bond Acceptor | 21 |
| Polar Surface Area (PSA) | 309.63000 |
| Activity |
|---|
| Activity not reported |
| Citations | |||||
|---|---|---|---|---|---|
| ID | Title | Year | Authors | Journal | DOI |
Rational Design and Synthesis of Post-Functionalizable Peptide Foldamers as Helical Templates | 2017 | Misawa T., Kanda Y., Demizu Y. | Bioconjugate Chemistry | ||
