The details of FoldDB ID: fd1327 |
|---|
Use the buttons at the bottom of Jsmol viewer to see different representations, ON/OFF Hydrogens, and ON/OFF rotation.
3D model is for representation purpose only. To access the experimental 3D structure kindly go to the browse structure tab and look for PDB or CCDC id.
.
.
| Identification | |
|---|---|
| FoldDB ID | fd1327 |
| Smiles | |
| Inchi Key | OWXJKVDDPLOODY-QKUYTOGTSA-N |
| Molecular weight | 627.822 |
| Molecular formula | C31H57N5O8 |
| Other Name

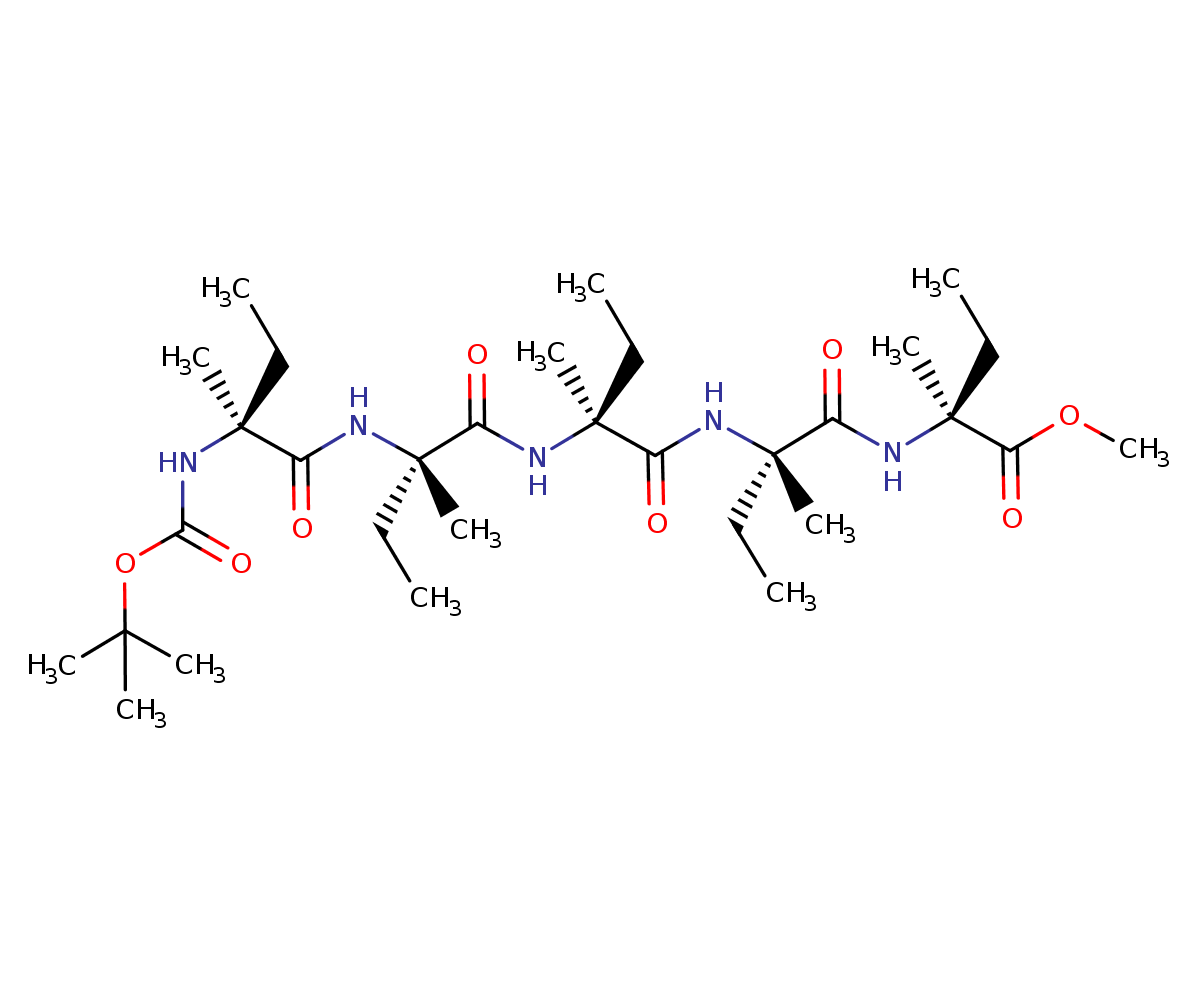

Since there is no uniform representation for the non-natural peptides. This is the name as it is mentioned in the original article and/or the external database. | Boc-[(S)-Iva]5-OMe |
| Note | |
| Source | synthetic construct |
| External ID | |||||
|---|---|---|---|---|---|
| Reaxys ID | 7735496 | ||||
| Structural Information | |
|---|---|
| Structure reported | yes |
| Method | NMR |
| NMR Solvent | CDCl3 |
| Other information | |
|---|---|
| Foldamer type | α Peptide |
| Calculated properties | |
|---|---|
| LogP | 2.54200 |
| Rotatable Bonds | 23 |
| H Bond Donor | 5 |
| H Bond Acceptor | 13 |
| Polar Surface Area (PSA) | 181.03000 |
| Activity |
|---|
| Activity not reported |
| Citations | |||||
|---|---|---|---|---|---|
| ID | Title | Year | Authors | Journal | DOI |
Studies on the Conformation of Boc-Protected (S)-(+)-Isovaline Homopeptide Methyl Esters in the Solid State and in Solution | 1997 | Jaun, Bernhard., Tanaka, Masakazu., Seiler, Paul., Kühnle, Florian N. M., Braun, Christine., Seebach, Dieter | Liebigs Ann.lRecuei | ||
